Powder Induction Systems

Atmospheric powder induction, high-rate dispersion, and liquid transport systems for rapid, lump-free ingredient incorporation.

Powder Induction Systems

Admix powder induction systems use venturi-based and high-shear designs to rapidly wet and disperse dry ingredients into liquid streams — eliminating dusting, lumping, and long hydration times. Five purpose-built systems cover everything from atmospheric induction to explosion-proof chemical dispersion to ergonomic waist-high hopper feeding.

Models

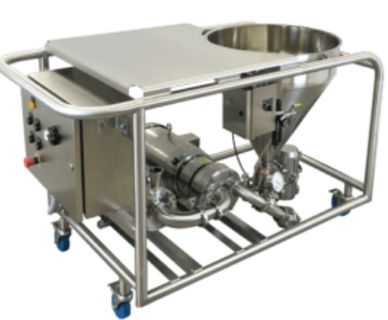

Admix Optifeed atmospheric powder induction system stainless steel

Optifeed™ (including CX)

Atmospheric Powder Induction System

The Optifeed™ uses atmospheric powder induction via Dynashear® or Boston Shearmill®, providing rapid introduction and wetting out of dry solids and/or liquid ingredients. The CX variant is configured for chemical applications requiring enhanced containment.

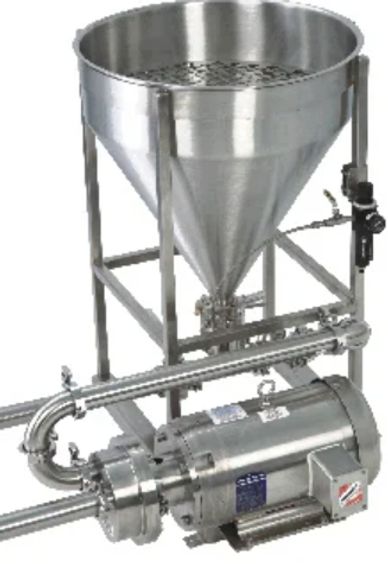

Admix Fastfeed powder feed and dispersion system stainless steel food grade

Fastfeed®

Powder Feed & Dispersion System

The Admix Fastfeed® inducts, wets, and disperses countless ingredients, instantly eliminating fisheyes. Proteins, gums, starches, vitamins, fiber, sweeteners, stabilizers, emulsifiers, flavors, and colors are dispersed at rates up to 500 pounds per minute in a single pass.

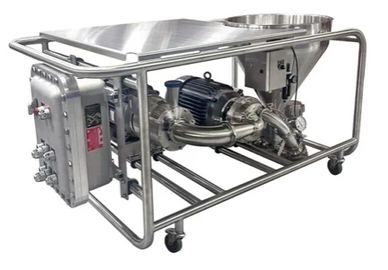

Admix Fastfeed CX explosion proof chemical powder dispersion system

Fastfeed® CX

Chemical Powder Feed & Dispersion System

The Admix Fastfeed® CX inducts, wets, and disperses countless chemicals, instantly eliminating fisheyes at rates up to 500 pounds per minute in a single pass. Upgraded to explosion-proof components for safe handling of flammable or hazardous chemical powders.

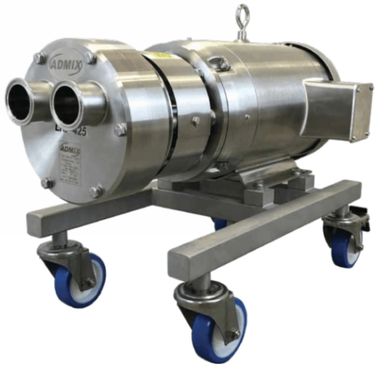

Admix LRP-425 liquid ring pump stainless steel self-priming

Liquid Ring Pump™ (LRP-425)

Rapid Liquid Transport & CIP Return

Ideal for rapid liquid transport and CIP return, the Admix LRP-425 Liquid Ring Pump excels in efficiently moving liquids with entrained air or gas. Its self-priming design simplifies drum, tote, tank, and product line emptying, supporting both filling and emptying with a single, versatile direction capability.

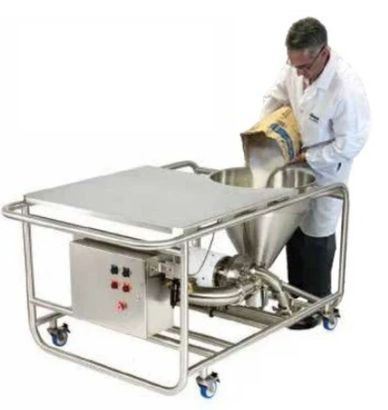

Admix PIC ergonomic atmospheric powder induction system waist-high hopper

PIC™

Ergonomic Atmospheric Feed System

The PIC™ is an ergonomic atmospheric feed system designed for powder induction, providing rapid introduction and wetting out of dry solids and/or liquid ingredients. Leveraging the venturi principle for unparalleled suction of both dry and liquid materials, its waist-high hopper simplifies ingredient addition. Capable of processing 50–200 pounds per minute depending on settings and operational conditions.

Key Features

  • Rapid powder wetting and dispersion — no lumping or fisheyes
  • Rates up to 500 lbs/min (Fastfeed) and 50–200 lbs/min (PIC)
  • Atmospheric induction via Dynashear® or Boston Shearmill®
  • Explosion-proof CX variant for chemical applications
  • Self-priming liquid ring pump for CIP return and liquid transport
  • Ergonomic waist-high hopper design (PIC) for operator safety
  • Sanitary stainless steel construction, CIP-compatible

Applications

Admix powder induction systems are used in food and beverage processing, dairy, nutritional supplements, pharmaceuticals, and chemical manufacturing. Particularly effective for incorporating hydrocolloids, starches, proteins, gums, vitamins, stabilizers, emulsifiers, and other difficult-to-wet powders.

STS Territory Coverage

Sharpe Thermal Solutions represents Admix powder induction systems in Colorado, Wyoming, Utah, and the Nebraska Panhandle. Contact Chris Sharpe for system selection, sizing, and application engineering support.
