Fin Fan Air Coolers

Custom-engineered air-cooled heat exchangers for oil & gas, compression, and industrial process cooling — no cooling water required.

Fin Fan Air Coolers

ETR Service, LTD designs and fabricates custom air-cooled heat exchangers for demanding industrial applications. Every unit is engineered specifically for the process — fan size, coil stack orientation, draft type, and drive configuration are all selected to match your operating conditions. ETR holds ASME Section VIII, Division I certification (U stamp for fabrication, R stamp for redesign), ensuring code-compliant construction for pressure-critical service.

Model Configurations

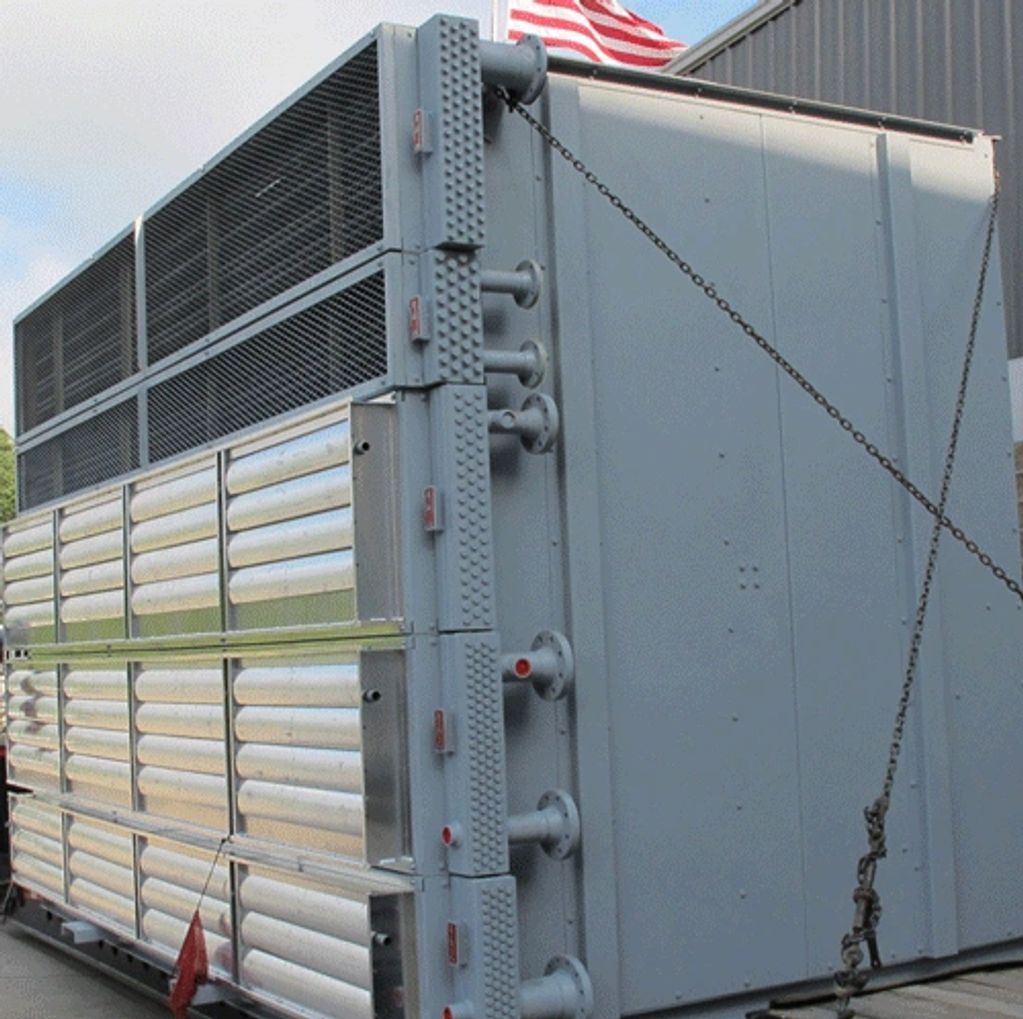

ETR Model Type VII vertical coil induced-draft fin fan cooler chained to flatbed trailer for delivery

Model Type VII

Drive
Engine / Motor
Fan Size
24" – 156"
Coil Stack
Vertical
Draft
Induced Draft
Fan Orientation
Internal-Vertical
ETR Model HFE/HIE horizontal fin fan cooler galvanized structural frame and fan plenum under construction in fabrication shop

Model HFE / HIE

Drive
Motor
Fan Size
32" – 168" (Single / Multiple)
Coil Stack
Horizontal
Draft
Forced / Induced Draft
Fan Orientation
External-Horizontal
ETR Model OFE oblique coil forced-draft fin fan cooler integrated into a natural gas compressor package skid on a field site

Model OFE

Drive
Engine / Motor
Fan Size
24" – 180"
Coil Stack
Slanted / Oblique
Draft
Forced Draft
Fan Orientation
External-Vertical
ETR Model HOE A-frame coil sections with fan blades visible through mesh guards outside the ETR fabrication facility

Model HOE

Drive
Engine
Fan Size
48" – 144" (Multiple)
Coil Stack
Horizontal
Draft
Forced Draft
Fan Orientation
External-Vertical

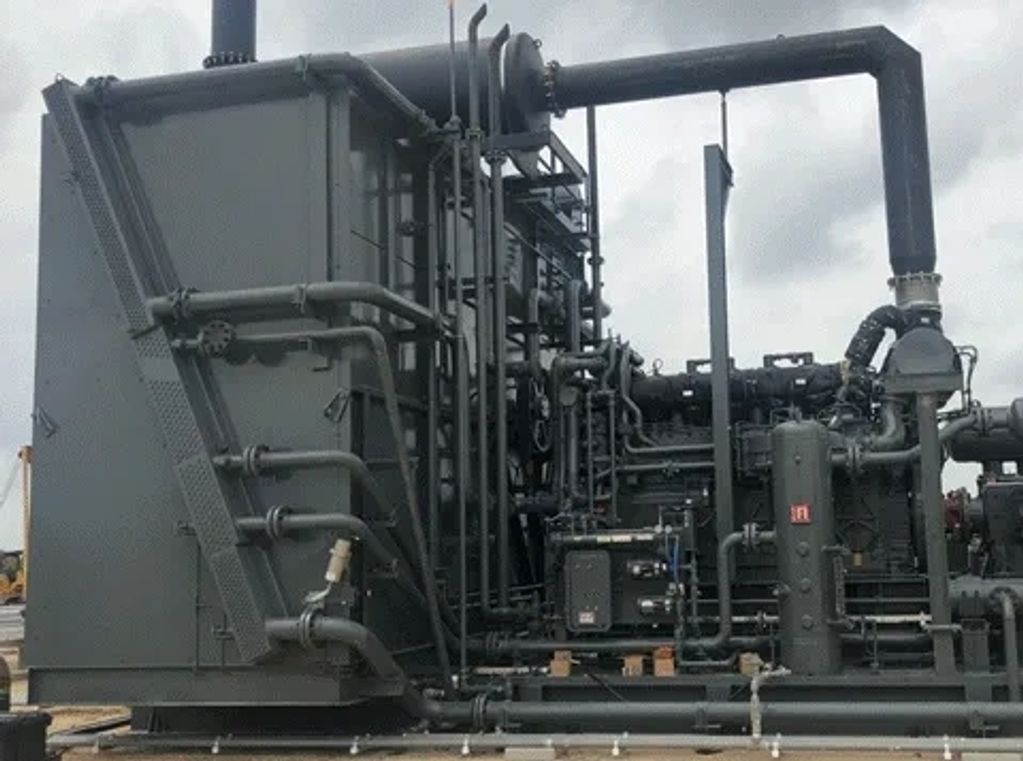

ETR Model VFE/VIE vertical coil fin fan cooler with finned tube face and flanged nozzle connections integrated into a compressor package skid outdoors

Model VFE / VIE

Drive
Engine / Motor
Fan Size
20" – 168"
Coil Stack
Vertical
Draft
Forced or Induced Draft
Fan Orientation
External-Vertical

Key Features

  • Five model configurations to match any process geometry and site layout
  • Engine or motor drive options across all models
  • Fan sizes from 20" up to 180" for high-capacity applications
  • Forced, induced, and combined draft configurations available
  • ASME Section VIII, Division I — U stamp fabrication, R stamp redesign
  • Smooth-fin tube design engineered for cleanability and long service life
  • Compressor package cooling, lube oil, jacket water, and gas aftercooling experience

Applications

ETR fin fan coolers are widely used in natural gas compression, oil & gas production, refining, petrochemical processing, and power generation. Common applications include compressor aftercoolers and intercoolers, engine jacket water and lube oil cooling, process gas cooling, and any service where cooling water is unavailable or undesirable.

STS Territory Coverage

Sharpe Thermal Solutions represents ETR Service across Colorado, Wyoming, Utah, and the Nebraska Panhandle. Contact Chris Sharpe for sizing assistance, technical specifications, and project pricing.
